How to Remove Stator from Motorcycle: A Comprehensive Step-by-Step Guide
Are you grappling with electrical issues in your motorcycle, and suspecting that the stator might be the culprit? Removing the stator can be a daunting task, but with the right guidance, you can tackle it with confidence. In this comprehensive guide, we'll break down the process into simple steps, making stator removal a breeze.
Delving into the Importance of Stator Removal
Stator issues can manifest in various ways, such as flickering headlights, diminished charging capacity, or even engine misfiring. If you're experiencing these symptoms, it's crucial to remove and inspect the stator. By doing so, you can restore the electrical integrity of your motorcycle and get back to enjoying smooth rides.
Detailed Instructions for Stator Removal
Step 1: Safety First
- Disconnect the battery's negative terminal to prevent electrical shock.
- Allow the engine to cool down to avoid burns.
Step 2: Accessing the Stator
- Locate the stator cover, usually situated on the left side of the engine.
- Remove the bolts securing the cover and gently pry it open.
Step 3: Removing the Stator
- Disconnect the electrical wires from the stator.
- Unbolt the stator from the engine casing.
- Carefully extract the stator from its housing.
Step 4: Reassembly and Safety Checks
- Reverse the removal steps to reassemble the components.
- Tighten all bolts securely.
- Reconnect the battery and verify that the electrical system is functioning correctly.
Key Takeaways:
- Stator removal is essential for diagnosing and resolving electrical issues.
- Disconnect the battery and allow the engine to cool down before starting.
- Carefully locate and remove the stator cover.
- Unplug the electrical wires and unbolt the stator from the engine.
- Reassemble all components securely and check electrical functions after reinstallation.
By following these steps, you can confidently remove the stator from your motorcycle, ensuring optimal electrical performance and a smooth riding experience.
How to Remove a Stator from a Motorcycle
Introduction
The stator is an essential component in a motorcycle's electrical system, converting mechanical energy into electrical energy to power various electrical components. In this comprehensive guide, we will delve into the detailed steps involved in removing the stator from a motorcycle, providing clear instructions for both experienced and novice mechanics alike.
Safety Precautions
- Wear gloves and safety glasses to protect yourself from potential injuries.
- Ensure the motorcycle is parked on a stable surface and in neutral gear.
- Disconnect the battery to prevent electrical shocks.
Step-by-Step Guide
1. Remove the Engine Cover
Locate the engine cover housing the stator and remove the bolts or screws securing it. Carefully lift the cover to expose the stator and other components.
2. Unplug the Electrical Connectors
Disconnect the electrical connectors attached to the stator. Use a flathead screwdriver or terminal removal tool to gently release the plugs.
3. Remove the Mounting Bolts
Identify the bolts or screws that secure the stator to the engine case. Using the appropriate tools, remove the mounting hardware.
4. Pull the Stator Out
Once the mounting bolts are removed, carefully pull the stator out of the engine case. Note the orientation of the stator as it will need to be reinstalled correctly.
5. Remove the Rotor
The rotor, which is attached to the crankshaft, may come out with the stator. If not, locate the bolts or screws holding the rotor and remove them to detach it.
6. Check for Damage

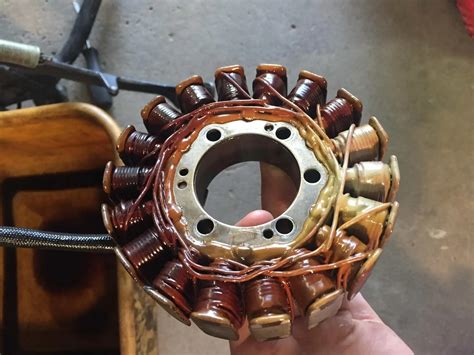

Inspect the stator, rotor, and wiring for any damage or wear. Replace damaged components as necessary.
Reassembly
- Insert the rotor into the engine case.
- Install the stator in its correct orientation.
- Secure the stator with mounting bolts.
- Plug in the electrical connectors.
- Replace the engine cover and secure it with bolts or screws.
- Reconnect the battery.
Troubleshooting
If the stator is not charging properly after reassembly, check for the following:
- Loose connections
- Faulty wiring
- Damaged stator or rotor
Conclusion
Removing the stator from a motorcycle can be a relatively straightforward task when done with proper safety precautions and a systematic approach. By following the steps outlined in this guide, you can successfully remove and replace the stator, restoring your motorcycle's electrical system to optimal functionality.
FAQs
- What are the signs of a faulty stator?
- Dim headlights
- Weak ignition spark
- Battery not charging
- Can I test a stator using a multimeter?
- Yes, check for resistance between stator coils and ground.
- How often should I replace the stator?
- Stator life varies depending on factors like riding style and mileage.
- Can I repair a damaged stator?
- Repairs are possible but may not be cost-effective.
- Is it necessary to replace the rotor when replacing the stator?
- Not always, but it's recommended to inspect the rotor for damage.
