Unveiling the Secrets: How to Wrestle with Broken Bolts in Cast Iron
Have you ever encountered the dreaded broken bolt in cast iron, leaving you scratching your head for a solution? Fret not! This guide will provide you with the ultimate tools and techniques to vanquish this stubborn problem.
The Perils of Broken Bolts
A broken bolt can present a formidable obstacle, threatening the integrity of your cast iron masterpiece. It can delay projects and cause frustration, making it crucial to address the issue swiftly and effectively.
Proven Solutions for Removing Broken Bolts from Cast Iron
- Reverse Drilling: Utilizing a drill with a left-handed bit, meticulously drill into the center of the broken bolt. Gradually increase the drill bit size until the bolt's threads are loosened and it can be easily removed.
- Weld a Nut: Weld a nut over the broken bolt to create a new gripping surface. Once the nut is securely welded, use a wrench to unscrew the bolt.
- Easy-Out: Insert an Easy-Out, a specially designed tool, into the broken bolt and turn it counterclockwise. The Easy-Out's reverse threads will bite into the bolt and extract it.
- Penetrating Oil: Diligently apply penetrating oil around the broken bolt and allow it to soak in for several hours. The oil will seep into the threads, loosening any corrosion and facilitating removal.
- Heat and Impact: Heat the broken bolt with a torch until it glows red. Then, use a hammer and chisel to strike the bolt at an angle, shattering it into smaller pieces that can be removed.
Taming the Broken Bolt Beast
By following these proven methods, you can effectively extract broken bolts from your cast iron. Remember to prioritize safety by wearing appropriate gloves and eye protection. With determination and the right techniques, you can conquer this challenge and restore your cast iron to its former glory.
How to Get a Broken Bolt Out of Cast Iron: A Comprehensive Guide
Introduction
Broken bolts in cast iron can be a frustrating and potentially costly problem. However, with the right tools and techniques, it is possible to remove them without damaging the surrounding material. This article will provide a step-by-step guide on how to get a broken bolt out of cast iron effectively.
Safety Precautions
Before attempting to remove a broken bolt, it is important to take the following safety precautions:
- Wear safety glasses and gloves to protect your eyes and hands.
- Use a cutting torch or a heat gun with caution, as it can produce dangerous sparks.
- Secure the cast iron object firmly to prevent it from moving during the extraction process.
Visual Examination and Assessment
Visual Examination: Inspect the broken bolt to determine its size, location, and orientation.
Assessment: Identify the type of bolt head (e.g., hex, square, socket) and the surrounding material (e.g., cast iron, steel).
Methods for Bolt Removal
1. Penetrating Oil
- Step: Apply a penetrating oil (such as Liquid Wrench or PB Blaster) to the exposed end of the bolt.
- Waiting Time: Allow the oil to penetrate for several hours or overnight.
2. Heat Application
- Step: Use a cutting torch or heat gun to heat the broken bolt until it starts to glow.
- Impact: While the bolt is still hot, carefully tap it with a hammer or mallet to loosen it.

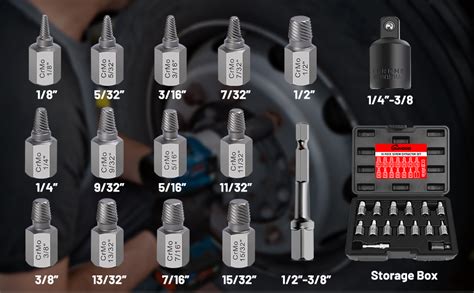

3. Bolt Extractor
- Step: Select a bolt extractor that matches the size and type of the broken bolt.
- Process: Insert the extractor into the broken bolt and turn it counterclockwise to engage the threads.
4. Reverse Drill Bit
- Step: Choose a reverse drill bit slightly smaller than the broken bolt.
- Drilling: Carefully drill into the center of the broken bolt, using a slow speed and reverse rotation.
- Extraction: Once the hole is deep enough, use a bolt extractor to remove the broken bolt.
5. Tap and Die Method
- Step: Select a tap and die set that corresponds to the threads of the broken bolt.
- Tap: Use the tap to create new threads in the broken bolt.
- Die: Thread the die onto the broken bolt and turn it clockwise to cut new threads.
Post-Extraction Care
Once the broken bolt has been removed, it is important to perform the following steps:
- Cleaning: Clean the threads of the cast iron surrounding the bolt hole to remove any debris or oil.
- Lubrication: Apply a thread lubricant (e.g., anti-seize compound) to the threads of the new bolt to prevent future problems.
Conclusion
Getting a broken bolt out of cast iron can be challenging, but it is possible with the right tools and techniques. By carefully following these steps, it is possible to remove the bolt without damaging the surrounding material. Always prioritize safety and consult a professional if you encounter any difficulties.
Frequently Asked Questions
1. What is the most effective method for removing a broken bolt from cast iron?
The most effective method depends on the specific situation. However, bolt extractors and reverse drill bits are generally considered to be the most reliable techniques.
2. Can I use a hammer and chisel to remove the broken bolt?
Using a hammer and chisel can be effective in some cases, but it is not recommended for cast iron as it can cause damage.
3. How do I prevent bolts from breaking in the future?
Using the correct size and type of bolt, applying anti-seize compound, and tightening them to the recommended torque can help prevent bolts from breaking.
4. What should I do if I am unable to remove the broken bolt on my own?
If you encounter difficulties, it is advisable to consult a professional mechanic or machinist for assistance.
5. Is it possible to repair the threads in cast iron after removing a broken bolt?
Yes, it is possible to repair damaged threads using a tap and die set or thread inserts. However, it is important to match the new threads to the original size and pitch.
.
