How to Take Apart a GM Alternator: A Step-by-Step Guide
If your GM vehicle is experiencing electrical problems, a faulty alternator could be the culprit. While replacing the alternator may be the most obvious solution, it can be a costly repair. If you're up for a challenge, you can save yourself a significant amount of money by taking apart and repairing the alternator yourself.
Difficulty:
Taking apart and repairing a GM alternator requires some mechanical knowledge and experience. However, with the right tools and a little patience, it can be accomplished by most home mechanics.
Tools and Materials:
- Socket wrench set
- Torx bit set
- Screwdriver
- Wire strippers
- Soldering iron
- New alternator brushes (if needed)
Steps:
- Disconnect the battery: Always disconnect the negative battery terminal before working on any electrical component.
- Unbolt the alternator: Locate the alternator and unbolt it from the engine using a socket wrench.
- Remove the stator cover: Use a Torx bit to remove the bolts holding the stator cover in place. Carefully lift off the cover.
- Disconnect the stator wires: Use a screwdriver to disconnect the stator wires from the voltage regulator.
- Remove the voltage regulator: Unbolt the voltage regulator and carefully lift it out of the alternator.
- Inspect the brushes: Check the alternator brushes for wear. If they are worn down, replace them with new ones.
- Solder the new brushes: If you need to replace the brushes, solder the new brushes in place.
- Reassemble the alternator: Reassemble the alternator in the reverse order of disassembly.
- Reconnect the battery: Reconnect the negative battery terminal and start the vehicle.
Check your work:
- Use a voltmeter to check the alternator output voltage. It should be between 13.5 and 14.5 volts.
- If the alternator is not charging properly, there may be a problem with other components in the electrical system.
- If the alternator is charging properly, you have successfully repaired it and saved yourself a significant amount of money.
How to Take Apart a GM Alternator
Introduction
General Motors (GM) alternators are essential components of the vehicle's electrical system, responsible for converting mechanical energy into electrical energy to power electrical components and recharge the battery. If the alternator malfunctions, it can lead to various electrical problems. This comprehensive guide will provide step-by-step instructions on how to disassemble and reassemble a GM alternator, enabling you to diagnose and repair any potential issues.
1. Safety Precautions
- Disconnect the negative battery terminal to prevent electrical shocks.
- Allow the alternator to cool down before handling it.
- Wear appropriate safety gear, such as safety glasses and gloves.

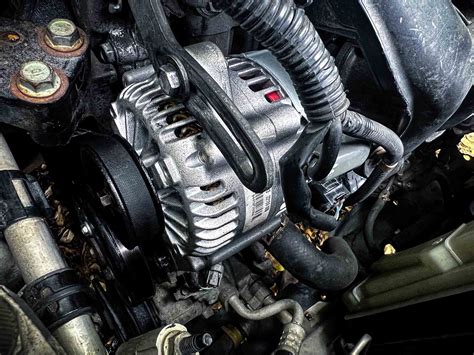

2. Removing the Alternator
- Locate the alternator, typically mounted on the engine.
- Unplug the electrical connector from the alternator.
- Loosen the mounting bolts securing the alternator to the engine.
- Carefully lift the alternator out of its bracket.

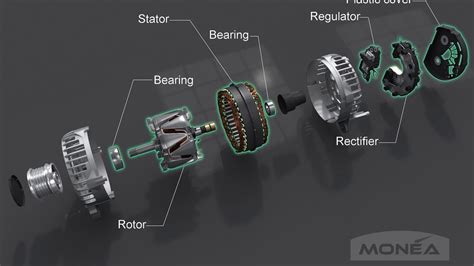

3. Disassembling the Alternator
- Remove the back cover by unscrewing the bolts.
- Lift off the back cover and the rotor assembly.
- Carefully detach the wiring harness from the diode trio.
- Unscrew the bolts holding the diode trio in place and remove it.
4. Diodes Inspection
- Inspect the diodes for any signs of damage, such as cracks or burns.
- Use a multimeter to test the diodes for continuity. Replace any faulty diodes.

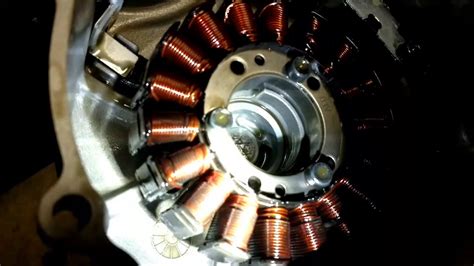

5. Stator Inspection
- Carefully lift out the stator from the alternator housing.
- Inspect the stator windings for any damage or short circuits.
- Use a megohmmeter to test the stator windings for insulation resistance. Repair or replace the stator if necessary.
6. Regulator Inspection
- Remove the regulator from the alternator housing.
- Inspect the regulator for any signs of damage or corrosion.
- Test the regulator's voltage output using a voltmeter. Replace the regulator if faulty.
7. Slip Rings Inspection
- Inspect the slip rings on the rotor assembly for any signs of wear or pitting.
- Clean the slip rings using a fine-grit sandpaper or a contact cleaner.
8. Rotor Bearings Inspection
- Remove the rotor bearings from the alternator housing.
- Inspect the bearings for any signs of damage or play.
- Lubricate the bearings with a high-temperature grease before reinstallation.

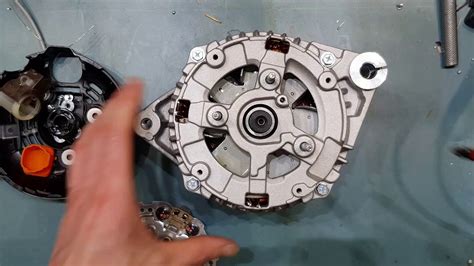

9. Reassembling the Alternator
- Install the new or refurbished components into the alternator housing.
- Reattach the stator, diode trio, regulator, back cover, and rotor assembly.
- Tighten all bolts securely.

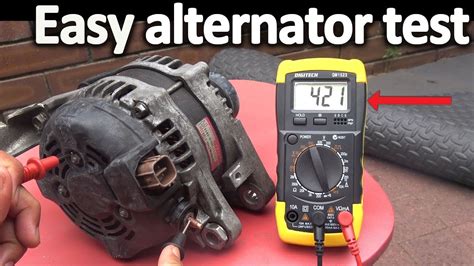

10. Testing the Alternator
- Reconnect the alternator to the battery and the electrical system.
- Start the engine and use a voltmeter to measure the alternator's output voltage.
- The alternator should produce a voltage between 13.5 and 14.5 volts.
11. Reinstalling the Alternator
- Position the alternator back into its bracket on the engine.
- Tighten the mounting bolts securely.
- Reconnect the electrical connector to the alternator.
Conclusion
Taking apart a GM alternator can be a daunting task, but by following the steps outlined in this guide, you can successfully disassemble, inspect, and reassemble the alternator, saving you both time and money. Regular maintenance and timely repairs can ensure the alternator's optimal performance, preventing electrical issues and keeping your vehicle running smoothly.
FAQs
1. What are the symptoms of a failing GM alternator?
- Dimming headlights
- Flickering dashboard lights
- Difficulty starting the engine
- Electrical component malfunctions
2. How often should I inspect my GM alternator?
- It is recommended to have your alternator inspected at least once a year or every 10,000-15,000 miles.
3. Can I rebuild my GM alternator instead of replacing it?
- Yes, it is possible to rebuild an alternator by replacing the faulty components, but it is generally more cost-effective to purchase a new or refurbished unit.
4. What is the average cost of replacing a GM alternator?
- The cost of replacing a GM alternator can vary depending on the make and model of the vehicle, but typically ranges from $250 to $600 for parts and labor.
5. Is it safe to drive with a faulty GM alternator?
- It is not advisable to drive with a faulty alternator, as it can damage other electrical components and leave you stranded.
