Is Your Voltage Regulator Failing? Here's How to Check
Your car's voltage regulator plays a crucial role in ensuring the proper functioning of various electrical components. When it fails, it can cause a range of issues, from engine stalling to battery problems. Knowing how to check if your voltage regulator is bad can save you from costly repairs and keep your vehicle running smoothly.
Symptoms of a Failing Voltage Regulator
Ignoring a faulty voltage regulator can lead to a slew of problems for your car. If you notice any unusual electrical issues, it's worth considering the possibility of a faulty voltage regulator.
How to Check if Your Voltage Regulator is Bad
Checking your voltage regulator is a relatively simple task that can be performed with a multimeter. Here's a step-by-step guide:
- Locate the voltage regulator, usually found on the alternator or the firewall.
- Connect the red lead of the multimeter to the battery's positive terminal and the black lead to the negative terminal.
- Set the multimeter to DC volts.
- Start the engine and let it idle.
- Touch the red lead of the multimeter to the voltage regulator's "BATT" or "BAT" terminal.
- The multimeter should read between 13.5 and 14.5 volts. If the voltage is too low or too high, it indicates a faulty voltage regulator.
Next Steps
If your voltage regulator fails the test, it's important to have it replaced promptly. A faulty regulator can damage other electrical components and even lead to battery failure. While the process of replacing a voltage regulator can vary depending on the make and model of your car, it typically involves disconnecting the battery, removing the old voltage regulator, and installing the new one.
How to Check if a Voltage Regulator is Bad
A voltage regulator is a crucial component in electronic circuits, ensuring a consistent voltage supply to other circuit components. Its failure can lead to system malfunctions, performance issues, or even damage to connected devices. Consequently, it's essential to promptly identify and replace a faulty voltage regulator. Here's a comprehensive guide to help you check if your voltage regulator is bad:
1. Visual Inspection
Start by visually inspecting the voltage regulator for any physical damage or signs of overheating. Look for cracks, bulges, or burn marks on the housing or circuit board.
2. Diode Test (Using a Multimeter)
Use a multimeter in diode test mode to check the voltage regulator's internal diodes. Connect the multimeter's probes to the regulator's input and output pins. A normal diode will show a forward voltage drop of around 0.7V. Reverse the probes and no conduction should occur.
3. Output Voltage Measurement
Connect a multimeter to the voltage regulator's output pin and ground. Measure the output voltage while the regulator is connected to a load. Compare the measured voltage to the manufacturer's specifications. A significant deviation indicates a faulty regulator.
4. Load Regulation Test
Test the voltage regulator's ability to maintain a stable output voltage under varying load conditions. Vary the load current using a variable resistor and monitor the output voltage. The output voltage should remain within acceptable limits despite the load changes.
5. Line Regulation Test
Assess the voltage regulator's response to changes in the input voltage. Vary the input voltage while monitoring the output voltage. The output voltage should maintain a stable level despite the input voltage variations.

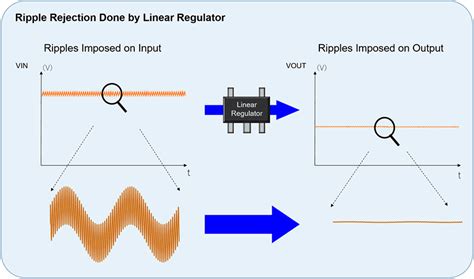

6. Ripple Rejection Test
The voltage regulator should effectively suppress the ripple present on the input voltage. Connect an oscilloscope to the output pin and measure the AC ripple component. The ripple should be within acceptable limits.
7. Short Circuit Protection Test
Verify the voltage regulator's ability to protect itself and downstream components in case of a short circuit. Short-circuit the output pin and observe the regulator's response. It should either trip or limit the output current to a safe level.
8. Overvoltage Protection Test
Check the voltage regulator's overvoltage protection feature. Gradually increase the input voltage to beyond the specified limits. The regulator should activate the overvoltage protection, limiting or shutting down the output.
9. Overcurrent Protection Test
Verify the voltage regulator's overcurrent protection. Increase the load current beyond the specified rating. The regulator should limit or shut down the output to protect itself and downstream components.
10. Thermal Resistance Test
Measure the voltage regulator's thermal resistance, which indicates how well it dissipates heat. Place the regulator in a controlled temperature environment and gradually increase the input power. Use a thermal probe to measure the temperature of the regulator's case.
Conclusion
Moreover, if you encounter any issues or have further questions during the testing process, consult the voltage regulator's datasheet for specific instructions and troubleshooting steps.
Frequently Asked Questions (FAQs)
- What is the most common cause of voltage regulator failure?
- Overheating due to excessive current draw or inadequate cooling.
- Can I repair a faulty voltage regulator?
- In most cases, it's recommended to replace the entire voltage regulator to ensure reliable operation.
- How often should I check my voltage regulator?
- Regularly monitor your voltage regulator's performance, especially if it's operating in a critical application.
- What are the consequences of using a faulty voltage regulator?
- Damage to connected devices, system malfunctions, or safety hazards.
- How can I prevent voltage regulator failure?
- Use a voltage regulator rated for the specific load requirements and provide adequate cooling.
