Hook:
Electric motors are a vital part of our modern world, powering everything from our appliances to our cars. But like any mechanical device, they can eventually wear out or fail. If your electric motor has stopped working, don't despair! In most cases, it can be restored to full functionality with a little time and effort.
Pain Points:
- Electric motors can be expensive to replace, especially for larger models.
- A faulty electric motor can cause inconvenience and downtime for your business or home.
- Trying to repair an electric motor yourself can be dangerous if you don't have the proper training.
How to Restore an Electric Motor:
Restoring an electric motor typically involves the following steps:
- Safety first: Disconnect the motor from its power source and discharge any capacitors.
- Inspect the motor: Look for any obvious signs of damage, such as burned wires or broken components.
- Test the motor: Use a multimeter to check the continuity of the windings and the resistance of the armature.
- Repair any faults: Based on the test results, identify and repair any faulty components. This may involve replacing brushes, bearings, or windings.
- Reassemble the motor: Once the repairs are complete, reassemble the motor in its original order.
- Test the motor again: Power up the motor and check its performance. Make sure it is running smoothly and without excessive noise or vibration.
Summary:
Restoring an electric motor can be a rewarding and cost-effective way to extend its lifespan and save money. By following these steps, you can troubleshoot and repair common faults, ensuring your motor operates smoothly and efficiently for years to come. Remember to always prioritize safety and seek professional assistance if you are not comfortable performing electrical repairs yourself.
Comprehensive Guide to Electric Motor Restoration
Electric motors are essential components in various industrial and household applications. Over time, these motors may deteriorate and require restoration to maintain their functionality and prolong their lifespan. This guide provides a comprehensive overview of the steps involved in restoring an electric motor effectively.
1. Safety Precautions
Before commencing any restoration work, ensure the safety of yourself and your surroundings. Disconnect the motor from the power source and ensure that it is adequately grounded. Wear appropriate safety gear, including gloves, safety glasses, and insulated tools.
2. Disassembly
Cautiously disassemble the motor by detaching all bolts, screws, and other fasteners. Carefully remove each component and inspect it thoroughly for any visible damage or corrosion. Take photographs or make detailed notes for easy reassembly later.
3. Cleaning
Remove dirt, grease, and debris from all motor components using a solvent and a soft cloth. Pay particular attention to the stator and rotor cores, which often accumulate dirt. Avoid using harsh chemicals or abrasives that could damage the insulation.
4. Winding Inspection
Thoroughly inspect the stator and rotor windings for any shorts, grounds, or other damage. Use a continuity tester or insulation tester to verify the integrity of the windings. Replace any damaged windings or sections as necessary.
5. Insulation Testing
Test the insulation of the stator and rotor windings to ensure adequate protection against electrical arcing. Perform a high-voltage insulation test to identify any weak spots in the insulation system. If necessary, apply new insulation or repair damaged sections.
6. Replacement of Bearings
Replace any worn-out bearings with new ones. Ensure the bearings are properly lubricated and installed according to the manufacturer's specifications. Lubricate the bearings with a grease specifically designed for electric motors.

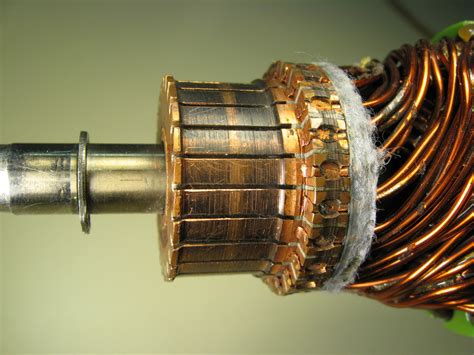

7. Commutator Maintenance (for DC Motors)
If the motor is a DC type, inspect the commutator for any damage or excessive wear. Clean the commutator using a fine-grit sandpaper or a commercially available commutator cleaner. Ensure the commutator is round and free of any burrs or flat spots.

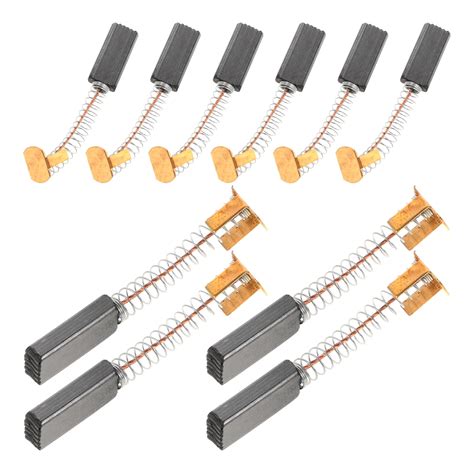

8. Brush Replacement (for DC Motors)
DC motors require the replacement of worn brushes. Select suitable brushes for the specific motor type and install them securely. Ensure the brushes are properly seated in the brush holders and have sufficient contact with the commutator.
9. Reassembly
Carefully reassemble the motor by reversing the disassembly process. Ensure all components are precisely aligned and securely tightened. Refer to the photographs or notes taken during disassembly to ensure proper placement of parts.
10. Rewiring
In cases where rewiring is necessary, replace the old wires with insulated copper wires of the appropriate gauge. Carefully route the wires through the motor and connect them to the respective terminals. Ensure all connections are secure and properly insulated.
11. Testing and Troubleshooting
After reassembling the motor, conduct a preliminary test to verify its functionality. Connect the motor to a power source and monitor its performance carefully. If any anomalies are observed, troubleshoot the issue and make necessary adjustments or repairs.
12. Lubrication
Lubricate the motor's moving parts, such as bearings and gears, using a high-quality lubricant designed for electric motors. Follow the manufacturer's recommendations for the type of lubricant and frequency of lubrication.
13. Protective Coating
Apply a protective coating to the motor's exterior to prevent corrosion and moisture damage. Choose a coating specifically designed for electric motors and follow the manufacturer's instructions for application.
14. Run-in Period
After restoring the motor, allow it to run for a short period under load to break in the new components and ensure stable operation. Gradually increase the load over time until the motor reaches its intended operating condition.
15. Maintenance
Regular maintenance is crucial to ensure the longevity of a restored electric motor. Conduct periodic inspections, clean the motor regularly, and lubricate moving parts as recommended. This proactive maintenance will help extend the motor's life and prevent premature failures.
Conclusion
Restoring an electric motor requires proper planning, attention to detail, and a systematic approach. By following the steps outlined in this guide, you can effectively restore your electric motor to its proper functionality and prolong its service life. Regular maintenance and preventive measures will further enhance the motor's reliability and ensure optimal performance for years to come.
Frequently Asked Questions (FAQs)
- What are the common signs that an electric motor needs restoration?
- Reduced efficiency
- Increased noise or vibration
- Overheating
- Sparking or arcing
- Worn bearings or brushes
- Can I restore an electric motor on my own?
- Yes, it is possible to restore a small electric motor with basic tools and knowledge. However, larger or complex motors may require professional assistance.
- What tools and equipment do I need to restore an electric motor?
- Safety gear (gloves, safety glasses)
- Socket set
- Screwdriver set
- Continuity tester
- Insulation tester
- Sandpaper or commutator cleaner
- Soldering iron (for rewiring)
- How often should I lubricate an electric motor after restoration?
- The lubrication frequency depends on the motor's operating conditions and manufacturer's recommendations. As a general rule, lubricate the motor every 6-12 months or after approximately 1000 hours of operation.
- What is the importance of using a protective coating on an electric motor?
- A protective coating prevents corrosion, moisture damage, and the accumulation of dirt and debris, which can compromise the motor's electrical insulation and performance.
