Attention Car Enthusiasts and DIYers!
Do you have aluminum heads that have lost their luster or need a performance upgrade? Resurfacing aluminum heads is a crucial step to restore their efficiency and performance. Here's a comprehensive guide on how to achieve a flawless finish.
Why Resurface Aluminum Heads?
Over time, aluminum heads can accumulate deposits, become warped, or sustain damage. This can hinder combustion, reduce performance, and even lead to engine problems. Resurfacing removes these imperfections, restores flatness, and improves sealing for optimal engine function.
Step-by-Step Guide to Resurfacing Aluminum Heads
- Inspection and Cleaning: Disassemble the cylinder head and inspect it for damage or cracks. Clean the head thoroughly using a solvent to remove oil, debris, and deposits.
- Milling: Secure the head on a milling machine and use a carbide cutter to remove the damaged material. The amount of material removed will depend on the severity of the damage or desired surface finish.
- Grinding: After milling, use a hand grinder to smooth the surface and remove any imperfections. This step is essential to ensure a flat and airtight seal.
- Decking: Deck the head using a surfacing machine or a hand deck plate to create a smooth and perpendicular surface that matches the block. This process ensures proper head gasket sealing.
- Porting (Optional): For performance enhancement, porting involves enlarging and smoothing the intake and exhaust channels to improve airflow. This requires specialized tools and expertise.
Key Points:
- Use a reputable machine shop or follow careful instructions for precise resurfacing.
- Choose the correct cutter for the material and severity of damage.
- Ensure a level surface with minimal warpage to prevent gasket leaks.
- Consider porting for performance upgrades, but it requires specific skills.
- Resurfacing aluminum heads not only restores performance but also extends their lifespan.
How to Resurface Aluminum Heads
Introduction
Resurfacing aluminum heads is a crucial step in engine rebuilding, restoring their sealing surfaces and ensuring optimal performance. This comprehensive guide will provide a detailed walkthrough of the process, from preparation to final finishing.

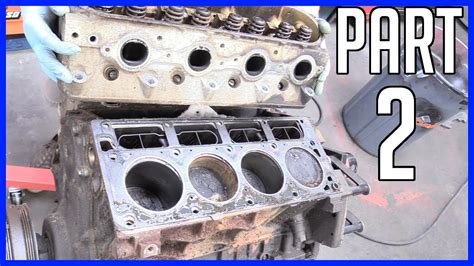

Removing the Heads
- Disconnect all wires, hoses, and other components connected to the heads.
- Remove the intake and exhaust manifolds.
- Unbolt the cylinder head bolts and carefully lift off the heads.
Cleaning the Heads
- Degrease: Thoroughly clean the heads using a degreaser to remove oil and debris.
- Carbon Removal: Use a commercial carbon cleaner or a mixture of acetone and brake cleaner to remove carbon deposits from the combustion chambers and intake/exhaust ports.
- Scrape and Brush: Use a razor blade or scraper to remove any remaining carbon buildup. Finish by brushing the heads with a wire brush to smooth the surfaces.
Leveling the Heads
- Prepare the Surfacing Machine: Ensure the surfacing machine is leveled and has a clean cutting surface.
- Mount the Heads: Secure the heads to the machine using appropriate clamps.
- Resurface the Heads: Slowly and gradually remove material from the heads until all surfaces are level. Check the flatness using a machinist's straight edge or a surface plate.
Valve Seat Machining
- Check Valve Seats: Inspect the valve seats for wear or damage.
- Regrind Valve Seats: If necessary, regrind the valve seats to a new angle using a valve seat cutting tool.
- Lap Valves: Lap the valves into the seats to ensure a proper seal.
Stud Installation
- Clean and Tap Holes: Clean the bolt holes in the heads and tap them to the correct size for the studs.
- Install Studs: Press or thread the studs into the holes, ensuring they are straight and secure.
Deck Surface Preparation
- Remove Gasket Material: Carefully remove any old gasket material from the deck surface of the heads.
- Clean and Polish: Clean the deck surface using a degreaser and polish it to create a smooth and flat surface.

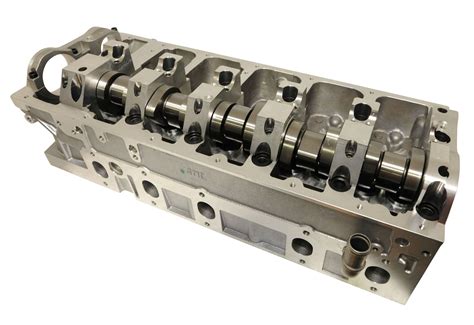

Cylinder Head Assembly
- Install Head Gaskets: Position new head gaskets over the head bolts and onto the block.
- Place the Heads: Carefully place the heads onto the gaskets, aligning the bolt holes.
- Tighten the Head Bolts: Torque the head bolts to the specified value in a star pattern to ensure even tightening.
Final Inspection and Finishing
- Inspect the Heads: Inspect the resurfaced heads for any imperfections or damage.
- Clean the Heads: Clean the heads thoroughly to remove any remaining debris.
- Apply Anti-Seize: Apply a thin layer of anti-seize lubricant to the stud threads and head bolts.
Conclusion
Resurfacing aluminum heads is a complex but essential engine rebuilding procedure. By following these steps carefully, you can restore the sealing surfaces of the heads, improve performance, and ensure a reliable and long-lasting engine.
FAQs
What is the purpose of resurfacing aluminum heads?
- To restore their sealing surfaces and ensure optimal performance.
When should aluminum heads be resurfaced?
- When they show signs of wear or damage, such as warping or cracked surfaces.
What are the benefits of resurfacing aluminum heads?
- Improves engine performance, prevents leaks, and extends engine life.
Is resurfacing aluminum heads a difficult task?
- It requires specialized equipment and expertise, but it is achievable with proper instruction.
Can I resurface aluminum heads at home?
- It is not recommended to attempt resurfacing aluminum heads at home unless you have the necessary equipment and experience.
