How to Tame Your Electric Choke and Unleash Your Holley Carb's Performance
If you're a gearhead or DIY enthusiast, chances are you've encountered the complexities of adjusting a Holley carburetor electric choke. It's a task that can leave even seasoned mechanics scratching their heads. But don't worry, we're here to guide you through the process with ease.
Pain Points: The Frustrating Cycle of Carb Adjustments
Fine-tuning your Holley carb's electric choke is an iterative process. Each adjustment can have an impact on the entire carbureting system, leading to a frustrating cycle of trial and error. From flooding to hesitation and poor fuel economy, the consequences of improper choke adjustment can be significant.
Simplifying the Adjustment: A Step-by-Step Guide
To adjust a Holley carb electric choke, follow these steps:
- Disconnect the battery and locate the choke housing.
- Remove the choke cover using a screwdriver or wrench.
- Adjust the choke coil by turning the slotted screw clockwise to lean the mixture or counterclockwise to richen the mixture.
- Tighten the choke coil screw and reconnect the battery.
- Start the engine and allow the choke to complete its cycle.
Key Points to Remember
- A properly adjusted choke should provide a quick and smooth transition from cold start to normal operating temperature.
- If the engine floods or stalls, the choke may be set too rich.
- If the engine hesitates or runs poorly when cold or hot, the choke may be set too lean.
- Regular adjustment and inspection of the choke are essential for optimal carb performance.
How to Adjust a Holley Carburetor Electric Choke
Introduction
The electric choke on a Holley carburetor plays a crucial role in controlling the fuel-to-air ratio during cold engine startup and warm-up. By adjusting this choke properly, you can ensure optimal engine performance, reduced fuel consumption, and emissions.
Safety Precautions
- Disconnect the battery before performing any electrical work.
- Wear appropriate safety gear, including gloves and safety glasses.
- Allow the engine to cool down before working on it.
Parts and Tools Required
- Holley carburetor
- 1/2-inch wrench
- Screwdriver
- Ohmmeter
Steps to Adjust the Electric Choke
1. Identify the Electric Choke
Locate the electric choke on the front of the carburetor, typically marked with the letter "E."
2. Disconnect the Electrical Connector
Unplug the electrical connector from the choke housing.
3. Measure Resistance
Using an ohmmeter, measure the resistance of the choke element. Most Holley chokes should have a resistance between 10 and 15 ohms when cold.
Image of Ohmmeter Measuring Choke Resistance
4. Adjust the Air Gap
The air gap between the choke plate and the carburetor body is critical. Using a 1/2-inch wrench, loosen the screw that holds the choke housing in place. Adjust the housing so that there is a gap of 0.020 to 0.030 inches.
Image of Adjusting Choke Air Gap
5. Reconnect Electrical Connector
Once the air gap is adjusted, reconnect the electrical connector to the choke housing.
6. Start the Engine
Start the engine and allow it to warm up.

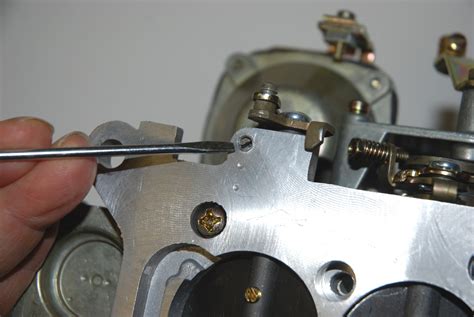

7. Adjust the Fast Idle Screw
Locate the fast idle screw on the carburetor. Adjust it so that the engine idles at approximately 1,500 rpm.
Image of Adjusting Fast Idle Screw
8. Drive the Vehicle
Drive the vehicle for a short distance. The choke should gradually open as the engine reaches operating temperature.
9. Re-Check Air Gap and Fast Idle
After driving the vehicle, re-check the air gap and fast idle screw to ensure proper functionality.
10. Fit a Spacer If Necessary
If the choke plate still does not fully open after driving, you may need to install a spacer between the carburetor and intake manifold. This will reduce the heat transferred to the choke and allow it to stay closed longer.
Conclusion
Adjusting a Holley carburetor electric choke is essential for optimal engine performance and fuel economy. By following these steps, you can ensure that your choke is functioning correctly and delivering the right amount of fuel to your engine.
FAQs
What is the purpose of an electric choke? To automatically control the fuel-to-air ratio during cold engine startup and warm-up.
What are the symptoms of a faulty electric choke? Hard starting, rough idling, and increased fuel consumption.
How often should I adjust my electric choke? As needed, typically after any major engine work or carburetor adjustments.
Can I adjust the choke settings on a vehicle that has been converted to electronic fuel injection? No, the electric choke is not used in electronic fuel injection systems.
What are the environmental benefits of adjusting the electric choke? Reduced emissions and improved fuel efficiency.
