Struggling with a Rich-Running Holley Carburetor? Here's Your Solution!
If your Holley carburetor is flooding your engine with too much fuel, causing rough idling, black smoke, and poor performance, it's crucial to adjust it correctly. Adjusting a Holley carburetor to run leaner can be a daunting task, but with the right guidance, it's a breeze.
Troubleshooting the Rich Condition
To ensure a leaner mixture, focus on three key areas: air-fuel ratio, fuel flow, and vacuum signal. Air-fuel ratio is crucial; a richer mixture contains more fuel than air, while a leaner one has a higher air-to-fuel ratio. Fuel flow is another essential factor, as excessive fuel delivery can lead to a rich condition. Lastly, the vacuum signal, which affects fuel metering, should be strong and consistent for optimal performance.
Tuning for a Leaner Mixture
1. Idle Mixture Screws: Start by locating the idle mixture screws on the carburetor base. Turn each screw slightly clockwise (lean out) to reduce the amount of fuel entering the idle circuit. Caution: Avoid over-tightening as this can damage the screws.

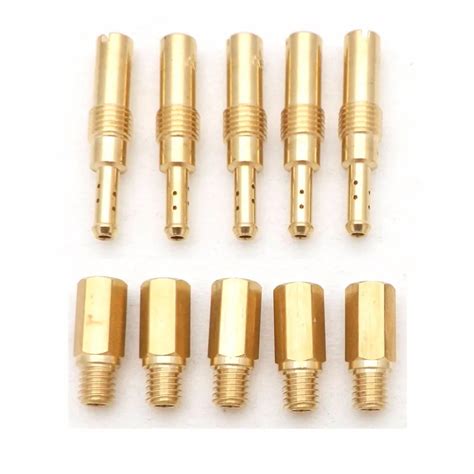

2. Main Jets: If adjusting the idle mixture screws doesn't suffice, the main jets may need to be changed. Select smaller jets to decrease fuel flow at higher engine speeds. Note: Jet changes require disassembling the carburetor.
3. Air Bleeds: Increasing the size of the air bleeds allows more air to enter the carburetor, which leans out the mixture. Choose larger air bleeds or drill them out slightly for a leaner condition.
4. Float Level: Incorrect float levels can cause fuel flooding. Adjust the float level according to the carburetor's specifications. Caution: This requires removing the fuel bowl.
5. Vacuum Signal: Ensure a strong and consistent vacuum signal at the carburetor. Check for vacuum leaks, loose hoses, or a weak vacuum source.
Summary
Adjusting a Holley carburetor to run leaner requires attention to air-fuel ratio, fuel flow, and vacuum signal. Idle mixture screws, main jets, air bleeds, float level, and vacuum source all play crucial roles in tuning for a leaner mixture. By following these steps and understanding the underlying carburetor principles, you'll restore your engine's performance and achieve a balanced air-fuel ratio.
Adjusting a Holley Carburetor Running Rich
Holley carburetors are renowned for their performance and tunability. However, improper tuning can lead to various issues, including an overly rich fuel mixture. This condition, known as "running rich," can result in poor performance, increased fuel consumption, and excessive emissions. Adjusting a Holley carburetor to correct a rich condition requires a systematic approach and a thorough understanding of its components.
1. Identifying the Rich Condition
Before attempting any adjustments, it's crucial to confirm that the carburetor is indeed running rich. Signs of a rich mixture include:
- Black smoke from the exhaust
- Rough idle and poor acceleration
- Fuel dripping from the carburetor
- High fuel consumption
2. Float Level Adjustment
The float level is a critical factor influencing the fuel mixture. An incorrect float level can cause the carburetor to flood, resulting in a rich condition. To adjust the float level:
Remove the carburetor top
Measure the distance between the top of the float and the gasket surface
Adjust the float by bending the float tang until the specified distance is achieved

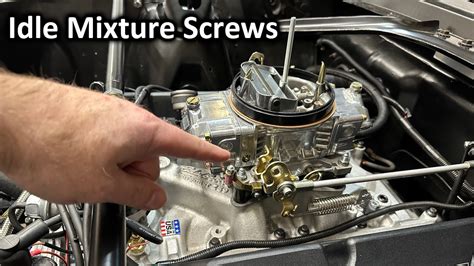

3. Idle Mixture Screws
The idle mixture screws control the air-fuel ratio at idle speed. They are typically located on the bottom of the carburetor. To adjust the idle mixture:
Start the engine and let it reach operating temperature
Slowly turn the screws inward until the engine speed peaks
Back out the screws 1/2 to 1 turn from the peak
Repeat for the other screw
4. Main Jets
The main jets are responsible for metering fuel at higher engine speeds. If the main jets are too large, the carburetor will deliver an excessively rich mixture. To adjust the main jets:
Remove the carburetor top
Replace the main jets with jets of a smaller size
Start with a reduction of 2 sizes and gradually increase as needed

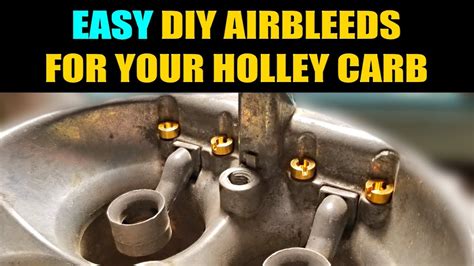

5. Air Bleeds
Air bleeds allow air to enter the carburetor at various locations, affecting the fuel mixture. To adjust the air bleeds:
Increase the size of the secondary air bleed (typically located above the main jets) by 2 sizes
Reduce the size of the idle air bleed (typically located near the idle mixture screws) by 1 size
6. Power Valves
Power valves regulate additional fuel flow under load. If the power valves are activated too early, the carburetor will deliver a rich mixture. To adjust the power valves:
Increase the vacuum rating of the power valves by 2 inches of vacuum
If the power valves are already at the highest vacuum rating, remove them and drill a small hole in the power valve restriction
7. Booster Venturi
The booster venturi directs air into the carburetor's throat, creating a pressure drop that draws fuel through the jets. An overly restrictive booster venturi can contribute to a rich condition. To adjust the booster venturi:
Increase the size of the booster venturi by 1 size

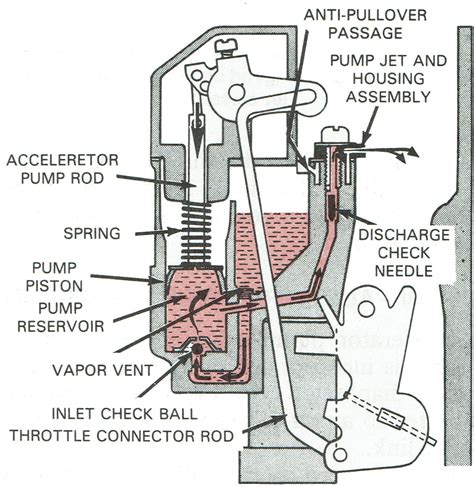

8. Accelerator Pump
The accelerator pump delivers an additional shot of fuel during acceleration, ensuring a smooth transition. An excessive accelerator pump shot can cause a rich condition. To adjust the accelerator pump:
Reduce the accelerator pump nozzle size
If the nozzle is already at the smallest size, adjust the pump lever position to deliver less fuel

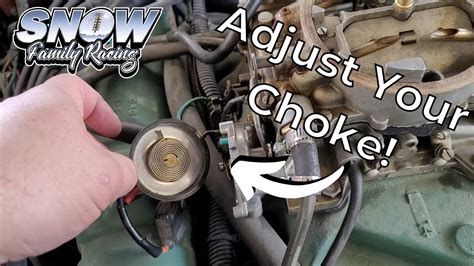

9. Choke Adjustment
A partially closed choke can cause a rich condition. To adjust the choke:
Ensure the choke is fully open when the engine is warm
If the choke is not fully open, adjust the choke linkage or replace the choke spring

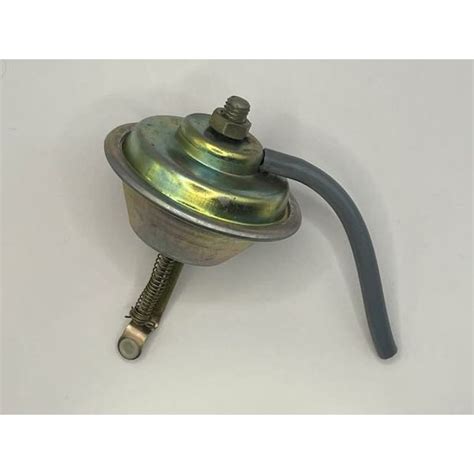

10. Secondary Diaphragm
The secondary diaphragm regulates the opening of the secondary throttle plates. A damaged or leaking secondary diaphragm can allow excessive fuel to enter the engine. To inspect and replace the secondary diaphragm:
Remove the carburetor top
Inspect the secondary diaphragm for tears or leaks
If the diaphragm is damaged, replace it
Conclusion
Adjusting a Holley carburetor that is running rich requires a systematic approach and a thorough understanding of its components. By carefully following the steps outlined in this guide, you can restore the carburetor to its optimal operating condition, improving performance, fuel efficiency, and emissions.
FAQs
1. What are the potential consequences of a carburetor running rich?
- Reduced engine performance
- Increased fuel consumption
- Excessive emissions
- Engine damage in severe cases
2. How can I tell if my carburetor is running rich?
- Check for black smoke from the exhaust
- Inspect for fuel dripping from the carburetor
- Note poor acceleration and rough idle
- Use a fuel mixture analyzer to measure the air-fuel ratio
3. Can I adjust a Holley carburetor without removing it from the engine?
- Some minor adjustments, such as idle mixture screw adjustments, can be made on the engine. However, for more complex adjustments, removing the carburetor is recommended.
4. What tools are typically needed to adjust a Holley carburetor?
- Screwdriver (flathead and Phillips)
- Socket wrench set
- Vacuum gauge (optional)
- Fuel mixture analyzer (optional)
5. Is it advisable to use aftermarket parts when adjusting a Holley carburetor?
- While aftermarket parts may offer performance benefits, it's important to consult with a qualified mechanic before using them. Improperly installed or incompatible aftermarket parts can lead to further issues.
