Establishing a Robust 4L60E for Enhanced Performance

how to build a strong 4l60e

Hook:

If you're a gearhead who craves power and precision from your transmission, the 4L60E deserves your attention. With its robust design and versatility, this transmission can transform your driving experience. But to harness its full potential, you must conquer the art of strengthening it for maximum performance.

Pain Points:

Unleashing the true capabilities of the 4L60E requires addressing common performance limitations. The transmission's stock components often struggle under increased torque and horsepower, leading to premature failures and frustrating shifts. Overcoming these hurdles is crucial for achieving the ultimate transmission experience.

How to Build a Strong 4L60E:

  1. High-Stall Torque Converter: Replace the stock converter with a high-stall unit to increase fluid flow and reduce heat buildup under heavy loads.
  2. Heavy-Duty Clutch Packs and Steel Plates: Upgrade to performance friction plates and heavy-duty steel plates to withstand the increased pressure generated by higher torque.
  3. Shift Kit: Install a performance shift kit to improve shift quality, reduce shift times, and enhance responsiveness.
  4. Transmission Cooler: Add an external transmission cooler to dissipate heat effectively, protecting vital components and prolonging transmission life.
  5. Beefed-Up Input Shaft: Replace the standard input shaft with a hardened unit to handle the increased torque and RPMs generated by performance upgrades.

Summary:

Mastering the art of building a strong 4L60E involves carefully addressing its performance limitations through strategic upgrades. By installing a high-stall torque converter, heavy-duty clutch packs, a shift kit, an external transmission cooler, and a beefed-up input shaft, you can transform your transmission into a reliable and potent performer that will elevate your driving experience to new heights.

A Comprehensive Guide to Building a Robust 4L60E Transmission

The 4L60E is a widely used automatic transmission found in various Chevrolet, GMC, and Pontiac vehicles. Its design offers a balance of power, efficiency, and durability. Building a strong 4L60E transmission requires meticulous attention to detail and the use of high-quality components.

1. Inspect and Clean Components

Begin by thoroughly inspecting all transmission components for any signs of wear or damage. Clean all parts using a solvent and compressed air to remove any dirt or debris.

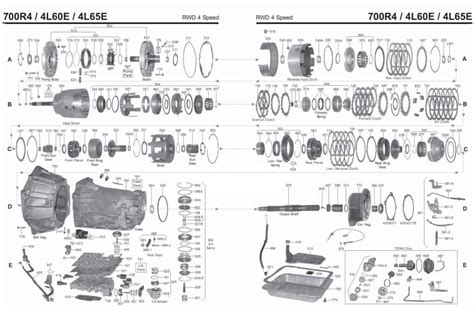

Image of 4L60E components

2. Upgrade Torque Converter

Consider upgrading the torque converter to improve torque multiplication and reduce slippage. High-performance torque converters offer increased stall speed and durability.

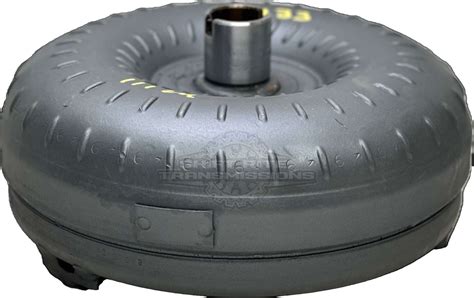

Image of 4L60E torque converter

3. Install Heavy-Duty Sun Shell and Reaction Carrier

Replace the stock sun shell and reaction carrier with heavy-duty units to handle increased torque loads. These upgraded components provide additional support and longevity.

Image of 4L60E sun shell and reaction carrier

4. Reinforce Input and Output Shaft

Upgrade the input and output shafts with hardened variants. This reinforcement improves strength and reduces wear, especially under high-stress conditions.

Image of 4L60E input and output shaft

5. Install Performance Clutches and Bands

Replace the stock clutches and bands with high-performance units designed for increased torque and heat resistance. These upgraded components provide improved transmission engagement and durability.

Image of 4L60E performance clutches and bands

6. Modify Valve Body

Modify the valve body to optimize shift patterns and reduce delays. This can be achieved through recalibration, drilling, and the installation of performance valve bodies.

Image of 4L60E valve body

7. Upgrade Governor Assembly

Replace the governor assembly with a higher-performance unit. This upgrade helps maintain accurate shift timing, especially under high-load conditions.

Image of 4L60E governor assembly

8. Inspect and Recondition Pump

Inspect the pump for any signs of wear or damage. Recondition it by replacing the seals and bearings. A properly functioning pump ensures adequate hydraulic pressure.

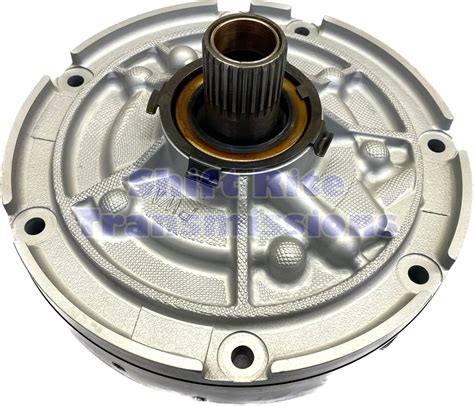

Image of 4L60E pump

9. Upgrade Filter and Fluid

Install a high-performance transmission filter to improve fluid filtration and reduce contamination. Also, use a synthetic transmission fluid that can withstand higher temperatures and improve lubrication.

Image of 4L60E filter and fluid

10. Dyno Tuning

After completing the build, dyno tuning is recommended to fine-tune the transmission's performance. This involves adjusting shift points, torque management, and governor settings to optimize power delivery.

Image of 4L60E on a dyno

11. Break-In and Maintenance

Follow a prescribed break-in procedure to gradually increase the load on the transmission. Regular maintenance, including fluid changes and filter replacements, is crucial for maintaining optimal performance.

Conclusion

Building a strong 4L60E transmission requires a combination of high-quality components and meticulous attention to detail. By following the steps outlined in this article, you can achieve a transmission that delivers enhanced durability, performance, and reliability.

Frequently Asked Questions

1. What are the benefits of building a strong 4L60E transmission?

A strong 4L60E transmission improves torque handling capacity, reduces slippage, enhances shift quality, and extends the overall life of the transmission.

2. What are the common symptoms of a weak 4L60E transmission?

Slippage, harsh shifts, delayed engagement, overheating, and noises are common indicators of a weak 4L60E transmission.

3. Can a 4L60E transmission handle higher torque levels?

Yes, by upgrading key components such as the torque converter, sun shell, reaction carrier, input and output shaft, and clutches, the 4L60E can handle significantly higher torque levels.

4. How much does it cost to build a strong 4L60E transmission?

The cost varies depending on the quality of components used and the extent of modifications required. However, anticipate spending anywhere from $2,000 to $6,000 or more.

5. Is it worth investing in building a strong 4L60E transmission?

For vehicles with high-performance engines, heavy tow loads, or frequent racing applications, building a strong 4L60E transmission is a wise investment. It enhances performance, reliability, and overall driving experience.
