How to Prevent Your Car From Stalling in the Middle of Nowhere
Your car's alternator is an essential part for running the vehicle. If the alternator ever stops working, your car will eventually die. So it's important to be able to diagnose alternator problems so you can fix them before they cause your car to break down.
Common Signs of an Alternator Issue
- Dim headlights
- A battery that struggles to hold a charge
- Strange noises coming from the alternator
- The battery light on your dashboard is illuminated
Diagnosing an Alternator Problem
- Check the battery voltage. The battery voltage should be around 12.6 volts when the engine is off. When the engine is running, the voltage should be around 14 volts. If the voltage is significantly lower or higher than these values, it could be a sign of an alternator problem.
- Test the alternator output. You can use a multimeter to test the alternator's output. The alternator should produce around 14 volts DC. If the output is significantly lower than this value, it could be a sign of an alternator problem.
- Inspect the alternator for damage. Look for any cracks or damage to the alternator's housing. You should also check the alternator's belt for any signs of wear or damage. If you find any damage, it could be a sign of an alternator problem.
If you suspect that your alternator is failing, it's important to have it checked by a qualified mechanic as soon as possible. A failing alternator can cause your car to break down, which can be dangerous and inconvenient. So it's best to get it fixed before it causes any major problems.
Troubleshooting an Alternator: A Comprehensive Guide to Diagnosis
Introduction
The alternator plays a crucial role in a vehicle's electrical system, ensuring a steady supply of electrical power to essential components. When an alternator malfunctions, it can lead to a range of issues, including electrical system failure, battery drain, and vehicle stalling. Therefore, timely alternator diagnosis is essential to maintain the vehicle's performance and prevent further damage.

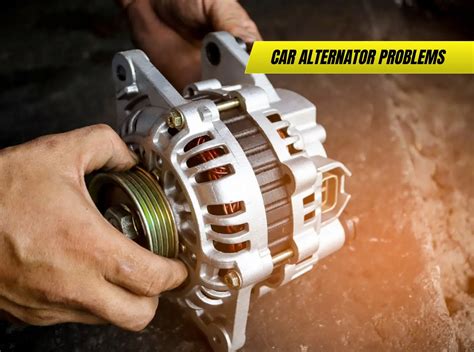

Identifying Alternator Problems
Dim or Flickering Headlights: A common symptom of a failing alternator is dim or flickering headlights, especially at night or while idling.
Battery Warning Light: The battery warning light on the dashboard may illuminate when the alternator is not providing sufficient power to charge the battery.
Difficulty Starting the Engine: A weak alternator can lead to difficulty starting the engine, particularly after the vehicle has been running for an extended period.
Electrical System Malfunctions: Various electrical components, such as power windows, radio, and gauges, may malfunction due to insufficient electrical power supply from a faulty alternator.
Burning Smell: In severe cases, a failing alternator can emit a burning smell due to excessive heat buildup.
Step-by-Step Alternator Diagnosis
1. Check Battery Voltage:
Start the engine and use a voltmeter to measure the voltage at the battery terminals. A fully charged battery should read between 13.5 and 14.5 volts. If the voltage is below 13.5 volts, it indicates a potential alternator problem.
2. Test Alternator Output:
Connect the voltmeter to the positive and negative terminals of the alternator. Rev the engine to 2,500 RPM, and the voltmeter should read between 13.5 and 14.5 volts. If the voltage is below 13.5 volts or it fluctuates significantly, the alternator may be faulty.
3. Inspect Serpentine Belt:
The serpentine belt connects the alternator to the engine crankshaft, and a loose or damaged belt can affect alternator performance. Check the belt for any cracks, glazing, or fraying, and ensure it is properly tensioned.
4. Test Diodes:
The alternator uses diodes to convert AC (alternating current) to DC (direct current). To test the diodes, use a multimeter set to the diode setting. Disconnect the alternator from the battery and test each diode for continuity. A good diode will allow current to flow in one direction only.
5. Check Voltage Regulator:
The voltage regulator controls the alternator's output voltage. To test it, use a multimeter to measure the voltage at the regulator's output terminal. The voltage should be within the specified range for the vehicle.
6. Other Possible Issues:
If the above tests do not identify the alternator problem, other issues may need to be investigated, such as the ignition switch, battery connections, or wiring harness. It is recommended to seek professional assistance for more complex diagnostics.
Conclusion
Diagnosing an alternator problem requires a systematic approach and careful testing procedures. By following the steps outlined in this guide, you can identify the source of the alternator issue and determine if repairs or replacements are necessary. Timely alternator troubleshooting helps prevent further damage to the electrical system, ensures reliable battery charging, and maintains the overall performance of the vehicle.
FAQs
- What are the most common alternator problems?
- Battery not charging, dim headlights, difficulty starting the engine
- How often should I have my alternator checked?
- As part of regular vehicle maintenance, every 3-5 years or 50,000-75,000 miles
- Can I drive with a bad alternator?
- For a limited time, but it can damage the battery and leave you stranded
- How much does it cost to replace an alternator?
- Typically $400-$800, including parts and labor
- Can I replace an alternator myself?
- Possible with mechanical skills, but professional assistance is recommended
