How Ethernet Wall Jacks Bring Seamless Connectivity to Your Home
In today's digital world, a reliable internet connection is essential for work, entertainment, and communication. Ethernet wall jacks provide a stable and high-speed connection, allowing devices to connect to the internet without relying on wireless signals that can be vulnerable to interference and signal strength issues.
The Challenges of Ethernet Wiring
While Ethernet cables offer superior performance compared to Wi-Fi, running cables through walls can be a daunting task, especially in existing structures. Ethernet wall jacks address this challenge by providing a convenient and professional solution for connecting devices to a wired network.
How Ethernet Wall Jacks Work
Ethernet wall jacks are installed in walls and connected to the Ethernet cable running from the modem or router. They feature a standard RJ-45 port that accepts Ethernet plugs. When a device such as a computer, smart TV, or gaming console is connected to the wall jack, it establishes a direct and secure connection to the network.
Benefits of Ethernet Wall Jacks
- Reliable and Fast Connection: Ethernet wall jacks provide a stable and high-speed connection, eliminating the inconsistency and latency issues that can occur with Wi-Fi.
- Reduced Cable Clutter: By eliminating the need to run cables across the room, wall jacks create a cleaner and more organized environment.
- Enhanced Security: Wired connections offer improved security compared to wireless networks, reducing the risk of unauthorized access and data breaches.
- Increased Value: Ethernet wall jacks enhance the value of a property by providing a reliable and permanent internet infrastructure.
How Do Ethernet Wall Jacks Work?
Ethernet wall jacks are an essential part of a wired network, allowing devices to connect to the internet and other network resources. They come in various forms, from simple single-port jacks to multi-port panels that can accommodate multiple devices. Understanding how Ethernet wall jacks work is crucial for proper network installation and troubleshooting.

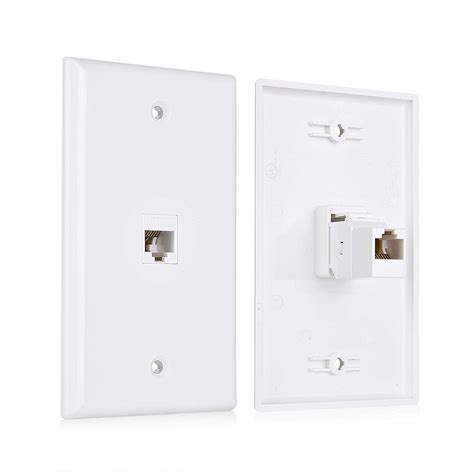

Anatomy of an Ethernet Wall Jack
An Ethernet wall jack typically comprises several key components:
- Faceplate: The visible portion that mounts on the wall and houses the jack.
- Jack: A modular connector that accepts Ethernet cables and establishes the electrical connection to the network.
- Mounting Bracket: A metal plate that secures the jack to the electrical box inside the wall.
Electrical Wiring
Ethernet wall jacks utilize Category 5e, Category 6, or Category 6A twisted-pair cables to transmit data. These cables consist of four pairs of color-coded wires that are twisted together and terminated in RJ45 connectors.
Types of Ethernet Wall Jacks
Single-Port Wall Jacks: These jacks have a single RJ45 port for connecting one device.
Multi-Port Wall Plates: These wall plates accommodate multiple RJ45 ports, allowing multiple devices to connect to the network.
Keystone Wall Jacks: These jacks are modular and can be snapped into keystone wall plates, providing flexibility and customization.
Installation Considerations
Proper installation is essential for reliable network connectivity.
- Choose a Suitable Location: Place the wall jack in a convenient location with access to both the electrical box and the desired network devices.
- Run the Ethernet Cable: Run the Ethernet cable from the network switch or router to the desired location and into the electrical box.
- Terminate the Cable: Connect the RJ45 connector to the Ethernet cable using a crimping tool and a color-coding scheme (T-568A or T-568B).
- Mount the Jack: Secure the jack to the mounting bracket and insert it into the faceplate.
- Test the Connection: Use a cable tester or connect a device to the jack to verify connectivity.
Functionality
Ethernet wall jacks work by providing a physical connection between Ethernet-enabled devices and the network cabling infrastructure. When a device plugs into the jack, the RJ45 connector establishes a connection with the twisted-pair wires in the Ethernet cable.
The network signals, typically in the form of data packets, travel through the twisted-pair wires and are received by the device's network interface card (NIC).
Troubleshooting Ethernet Wall Jacks
Common issues with Ethernet wall jacks include:
- No Connection: Check the cable connections, ensure the jack is properly wired, and replace any damaged cables or jacks.
- Intermittent Connection: Tighten loose connections, verify the cable quality, and inspect the jack for any damage.
- Slow Speed: Use a higher-category cable (e.g., Cat 6A) or ensure the wall jack is compatible with the device's speed requirements.
Conclusion
Ethernet wall jacks provide a vital interface for connecting devices to a wired network. Understanding their anatomy, electrical wiring, types, installation considerations, and functionality enables proper network setup and troubleshooting. By following the principles discussed in this article, you can ensure reliable and efficient network connectivity through Ethernet wall jacks.
FAQs
- What type of Ethernet cable should I use?
Use Category 5e, Category 6, or Category 6A twisted-pair cables, depending on the network speed requirements and cable length.
- How do I terminate an Ethernet cable for a wall jack?
Use a crimping tool and follow the T-568A or T-568B color-coding scheme to connect the RJ45 connector to the Ethernet cable.
- What is the difference between a single-port and a multi-port wall jack?
Single-port wall jacks accommodate one device, while multi-port wall plates can connect multiple devices simultaneously.
- How do I troubleshoot a non-functional Ethernet wall jack?
Check the cable connections, test the jack with a cable tester, and replace any damaged cables or jacks.
- Can I use an Ethernet wall jack to connect a phone?
No, Ethernet wall jacks are designed for data transmission and cannot be used for telephone connections.
