Unlocking the Secrets of Replacing Gearbox Synchro: A Comprehensive Guide
Are you tired of the dreaded grinding noises when shifting gears? If so, it might be time to replace your gearbox synchro. Don't worry, this intricate repair can be tackled with the right knowledge and tools. Here's your step-by-step guide to replacing gearbox synchro like a pro.
Understanding the Need for Synchro Replacement
If your gears refuse to engage smoothly or grind excessively, it's a telltale sign that your gearbox synchro is on its last legs. Synchros align and synchronize the speed of the input shaft with the output shaft, preventing gear clashes. Worn or damaged synchros can lead to premature wear of gears, making them difficult or impossible to shift.
How to Replace Gearbox Synchro
- Safety First: Park your vehicle on a level surface and engage the parking brake. Disconnect the battery to prevent electrical hazards.
- Access the Gearbox: Locate and remove the gearbox mounting bolts and supports. Carefully lower the gearbox using a transmission jack.
- Separate the Gearbox: Open the gearbox housing and remove the input shaft. The synchro assembly is typically located on the input shaft.
- Replace the Synchro: Inspect the synchro for damage and wear. Replace the old synchro with a new one. Ensure the new synchro is properly aligned and secured.
- Reassemble and Test: Reassemble the gearbox in reverse order, torquing all bolts to the specified values. Reinstall the gearbox and reconnect the battery. Start the engine and test the shifting operation.
Key Takeaways:
- Worn or damaged gearbox synchros can cause grinding and difficulty in shifting gears.
- Replacing gearbox synchros involves accessing and separating the gearbox, replacing the worn synchro assembly, and reassembling the gearbox.
- Proper tools, safety precautions, and attention to detail are essential for a successful replacement.
How to Replace a Gearbox Synchro
Replacing a gearbox synchro is a complex task that requires specialized knowledge and tools. This article provides a detailed guide on how to replace a gearbox synchro, covering all the necessary steps and precautions.
Understanding the Function of a Gearbox Synchro

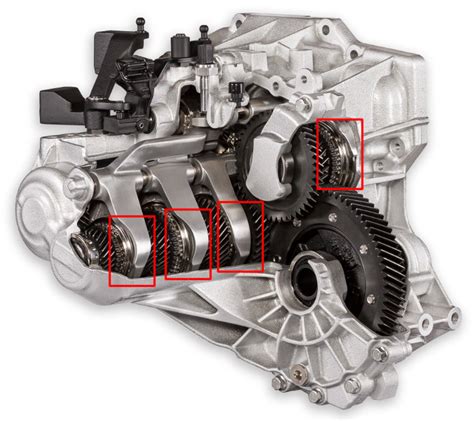

A gearbox synchro is a crucial component that ensures smooth and efficient gear changes. It synchronizes the speeds of the input and output shafts of the gearbox, preventing grinding and damage to the gears.
Identifying Symptoms of a Faulty Synchro
A faulty synchro can manifest in various symptoms, such as:
- Grinding noises: When shifting gears, especially during high torque or acceleration.
- Difficulty engaging gears: Gears may refuse to engage or pop out of place.
- Notchy gear changes: Shifting becomes rough and requires excessive force.
Tools and Materials Required
Before beginning the repair, gather the necessary tools and materials:
- Replacement synchro
- Gearbox oil
- Socket wrench set
- Torque wrench
- Gear puller
- Sealant
- Rags
Safety Precautions
It is essential to prioritize safety when performing mechanical repairs. Take the following precautions:
- Park the vehicle on a level surface and engage the parking brake.
- Disconnect the battery to prevent accidental electrical shocks.
- Wear protective gear, including gloves and safety glasses.
- Allow the engine and gearbox to cool before starting work.
Step-by-Step Guide to Replacing a Gearbox Synchro
1. Remove the Gearbox
- Drain the gearbox oil into a suitable container.
- Disconnect the linkage from the gearbox.
- Remove the driveshafts and any other components connected to the gearbox.
- Unbolt the gearbox and carefully lower it out of the vehicle.
2. Disassemble the Gearbox
- Place the gearbox on a work surface and split the case.
- Remove the old synchro from the input or output shaft.
3. Prepare the Replacement Synchro
- Apply sealant to the new synchro and insert it onto the shaft.
- Align the synchro correctly and tighten the retaining bolts to the specified torque.
4. Reassemble the Gearbox
- Reassemble the gearbox in reverse order of disassembly.
- Make sure all components are correctly aligned and tightened to specification.
5. Replace the Gearbox
- Lift the gearbox back into the vehicle and bolt it into place.
- Reconnect all components and driveshafts.
6. Fill with Gearbox Oil
- Refill the gearbox with the recommended type and quantity of gearbox oil.
- Check the oil level using the dipstick.
7. Test Drive
- Start the vehicle and shift through all the gears.
- Ensure smooth and quiet gear changes without any grinding or popping.
Advanced Considerations
For more complex gearbox designs or performance applications, consider the following advanced tips:
- Upgrading the Synchro: Use performance-oriented synchronizers for improved shift quality and durability.
- Inspecting the Gears: Check the gears for wear or damage, and replace as necessary.
- Using a Synchronizer Tester: Utilize a specialized tool to verify the functionality of the new synchro.
Conclusion
Replacing a gearbox synchro is a technically demanding task that should be performed by experienced mechanics with the appropriate tools and knowledge. By following the steps outlined in this article, you can effectively replace a faulty synchro and restore optimal gearbox performance.
FAQs
1. What are the common causes of synchro failure?
- Excessive wear and tear due to aggressive driving or high mileage.
- Lack of regular gearbox oil changes.
- Faulty components within the gearbox.
2. Can I replace a synchro without removing the gearbox?
- In most cases, replacing a synchro requires removing the gearbox from the vehicle for complete disassembly.
3. How long does it take to replace a gearbox synchro?
- Depending on the complexity of the gearbox and the mechanic's experience, it typically takes between 4 and 8 hours of labor.
4. What is the average cost of replacing a gearbox synchro?
- The cost varies depending on the vehicle make/model, labor rates, and whether additional parts need to be replaced. It can range from $500 to $2,000 or more.
5. How can I prevent premature synchro wear?
- Regular gearbox oil changes using high-quality lubricants.
- Avoiding aggressive driving or excessive shifting under heavy loads.
- Inspecting and replacing worn or damaged clutch components.
