alternator">Troubleshooting Your Car's Electrical Power: How to Bench Check an Alternator
Imagine your car sputtering to a halt, leaving you stranded on the roadside. The culprit? A faulty alternator that's failing to provide enough power to keep your car running. Before you call for a tow, try bench checking your alternator to diagnose the problem and save yourself a costly repair.
When Bench Checking Your Alternator Matters
Electrical problems in your car can be a nightmare. A malfunctioning alternator can lead to dead batteries, flickering lights, and even engine failure. By bench checking your alternator, you can identify and fix the issue before it leaves you stranded.
Bench Checking an Alternator: Step-by-Step
- Prepare the Equipment: You'll need a bench testing machine or a multimeter, a battery, and jumper cables.
- Connect the Alternator: Connect the alternator's positive terminal to the positive terminal of the battery, the negative terminal to the negative terminal, and the chassis ground to the alternator's body.
- Start the Machine: Turn on the bench testing machine or multimeter to display the alternator's voltage output.
- Run the Test: Rev up the alternator using the machine or by hand. Observe the voltage output as you do so.
- Check the Output: The alternator should produce a consistent voltage output between 13.5 and 14.5 volts at all speeds.
Key Points to Remember
- A properly functioning alternator will provide a steady voltage output between 13.5 and 14.5 volts.
- Insufficient voltage output may indicate a faulty alternator that's not charging the battery adequately.
- Excessive voltage output can damage electrical components and should be addressed immediately.
- Bench checking an alternator is a simple yet effective way to diagnose electrical problems in your vehicle.
How to Bench Check an Alternator
Introduction
An alternator is a crucial component of a vehicle's electrical system, responsible for generating and maintaining the electrical power required for various components, including the battery, ignition system, and various electrical devices. A faulty alternator can lead to several issues, including battery drainage, engine stalling, and diminished electrical performance. Bench checking an alternator allows you to determine its functionality and identify potential issues without the need for additional diagnostics in the vehicle.
Materials Required
- Battery charger
- Voltmeter
- Bench power supply
- Jumper wires or alligator clips
Safety Precautions
- Wear appropriate safety gear, including gloves and safety glasses.
- Ensure the alternator is cool to the touch before handling it.
- Disconnect the negative terminal of the battery before performing the test.
Step 1: Visual Inspection
Begin by visually inspecting the alternator for any physical damage, such as cracks, broken wires, or loose connections. Replace the alternator if any significant damage is observed.

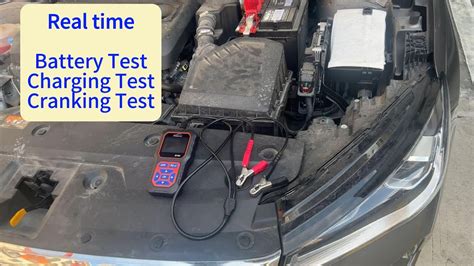

Step 2: Charging System Test
Connect the positive terminal of the battery charger to the alternator's "B" terminal and the negative terminal to the alternator's case. Set the battery charger to "Alternator/Battery" mode and initiate the charging cycle. The voltmeter should indicate a voltage of approximately 14-15 volts. If the voltage is significantly lower or higher, it may indicate a problem with the alternator.

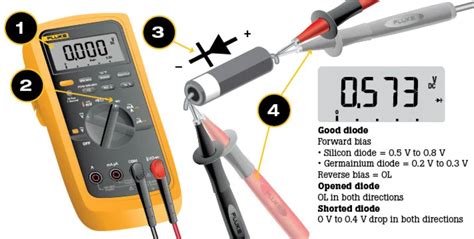

Step 3: Diode Test
Disconnect the battery charger and ensure the alternator is grounded. Using a voltmeter, measure the resistance between the stator and rectifier terminals. Reverse the probes and measure the resistance again. A good diode will have low resistance in one direction and high resistance in the other direction. If the resistance is high in both directions, the diode may be open. If the resistance is low in both directions, the diode may be shorted.

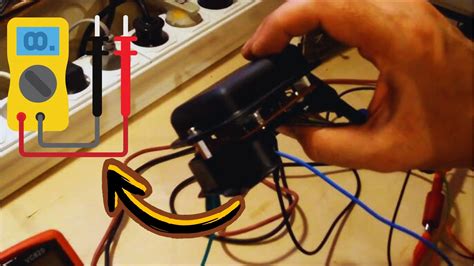

Step 4: Voltage Regulator Test
Connect a bench power supply to the alternator's "F" and "D+" terminals. Gradually increase the power supply voltage while monitoring the voltage output at the "B" terminal using a voltmeter. The voltage output should increase linearly with the increasing power supply voltage. If the voltage output is erratic or does not reach the specified value, the voltage regulator may be faulty.
Step 5: Bearing Test
Spin the alternator's pulley by hand and listen for any unusual noises, such as grinding or squealing. Excessive noise may indicate worn-out bearings, which can lead to premature alternator failure.
Step 6: Pulley Test
Inspect the alternator's pulley for any cracks, misalignment, or excessive wobble. A damaged or misaligned pulley can cause belt slippage, leading to reduced charging efficiency and potential alternator damage.
Conclusion
Bench checking an alternator allows you to assess its functionality without the need for vehicle diagnostics. By following these steps and using appropriate testing equipment, you can accurately identify any potential issues and make an informed decision regarding whether to repair or replace the alternator. Regular alternator maintenance and timely replacement ensure optimal electrical performance, battery health, and overall vehicle reliability.
FAQs
Q: How often should I bench check an alternator?
A: Regular alternator maintenance is recommended every 2-3 years or as per the manufacturer's specifications. Bench checking the alternator can provide peace of mind and help detect potential issues before they become critical.
Q: What are the common signs of a faulty alternator?
A: Signs of a faulty alternator include difficulty starting the vehicle, dim headlights, flickering dashboard lights, dead battery, and excessive alternator noise.
Q: Can I repair an alternator myself?
A: Attempting alternator repairs without proper knowledge and experience is not recommended. Alternators contain complex electrical components, and mishandling them can lead to further damage. It is best to seek professional assistance for alternator repairs.
Q: How much does it cost to replace an alternator?
A: The cost of alternator replacement varies depending on the vehicle make, model, and location. Typically, the cost can range from $300 to $800, including parts and labor.
Q: Can I drive with a faulty alternator?
A: It is not advisable to drive with a faulty alternator. A failing alternator can lead to battery discharge, engine stalling, and reduced electrical performance. This can pose significant safety risks, especially during nighttime driving or in remote areas.
.
