How to Tell if Your Alternator Is Bad? Don't Keep Guessing, Test It!
Are you experiencing electrical issues with your car? Is your battery light flickering or staying on? These could be signs of a failing alternator. But before you replace your alternator, it's essential to test it to confirm the diagnosis. Here's a simple guide on how to test an alternator:
Materials You'll Need:
- Digital multimeter
- Jumper cables (optional)
Steps:
Safety First: Park your car on a flat surface, engage the parking brake, and turn off the engine. Disconnect the negative battery terminal.
Set Up Your Multimeter: Select the "DC Volts" function on your multimeter and set the range to 20 volts or higher.
Connect to the Battery: Attach the red lead of the multimeter to the positive battery terminal and the black lead to the negative battery terminal.
Start the Engine: Turn on the engine and let it idle. The voltage reading on the multimeter should be around 13.5-14.5 volts.
Turn On Lights and Accessories: One by one, turn on the headlights, heater, and other accessories to put a load on the alternator. The voltage should remain stable, within the 13.5-14.5 volt range.
Rev the Engine: Increase the engine speed to around 2,000 rpm. The voltage should rise to slightly over 14 volts.
Interpretation of Results:
- Voltage below 13.5 volts: Your alternator may not be generating enough power to charge the battery.
- Voltage fluctuating significantly: This may indicate a faulty voltage regulator or loose connections.
- Voltage remaining constant even after increasing the engine speed: This suggests a weak or failing alternator.
- Unable to start the engine after testing: Your alternator may be completely dead.
Tips:
- If you don't have a multimeter, you can use jumper cables to test the alternator. Connect one end of each cable to the battery terminals and the other ends to the alternator terminals (F and B+). If the engine starts and stays running, the alternator is likely working.
- If your alternator fails the test, it's best to replace it as soon as possible to avoid further electrical problems.
How to Test an Alternator to Determine Its Condition
Introduction
An alternator is a crucial component of a vehicle's electrical system, responsible for generating electricity and charging the battery. A faulty alternator can lead to various electrical issues, such as a dead battery, flickering lights, or even engine stalling. Therefore, it is essential to test the alternator regularly to ensure its proper functioning. This article provides a comprehensive guide on how to test an alternator to determine its condition.
Safety Precautions
- Disconnect the negative terminal of the battery before performing any testing.
- Use insulated tools and wear safety glasses.
- Handle electrical components with care to avoid shocks.
Visual Inspection
Begin by visually inspecting the alternator for any obvious signs of damage, such as:
- Cracks or breaks in the housing
- Loose or corroded connections
- Burnt wires or frayed belts
If any damage is observed, it is recommended to replace the alternator immediately.

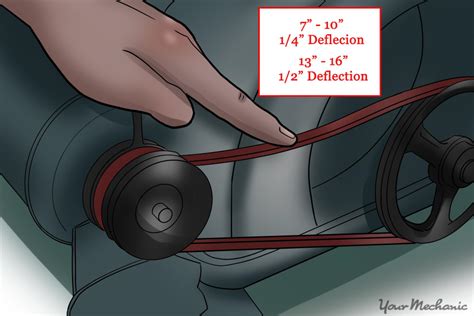

Belt Tension Check
- Depress the alternator belt in the middle and measure its deflection.
- The deflection should be within the manufacturer's specifications, typically around 1 inch (25 mm) for a new belt and 1/2 inch (12 mm) for a used belt.
- If the belt is too loose or too tight, adjust its tension as per the instructions in the vehicle's manual.

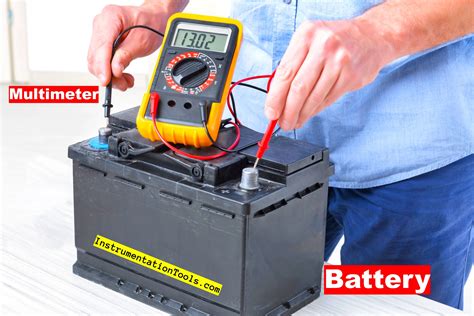

Battery Voltage Test
- With the engine running at idle, use a multimeter to measure the voltage across the battery terminals.
- A healthy alternator should maintain a voltage between 13.5 and 14.5 volts.
- If the voltage is significantly lower or higher than this range, it may indicate an alternator issue.

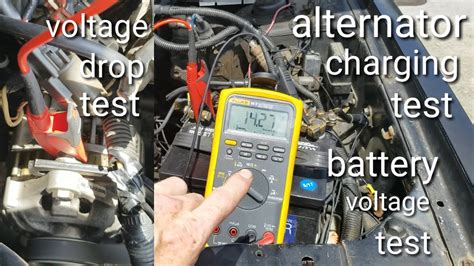

Voltage Drop Test
- Connect one end of the multimeter to the positive terminal of the battery and the other end to the alternator's positive output terminal.
- Start the engine and gradually increase the load by turning on headlights, heater, etc.
- The voltage drop should not exceed 0.5 volts at any load level. A higher voltage drop indicates excessive resistance in the alternator or its connections.
Ground Check
- Use a multimeter to measure the resistance between the alternator's negative terminal and the negative terminal of the battery.
- The resistance should be close to zero. A high resistance indicates a poor ground connection that can prevent the alternator from functioning properly.

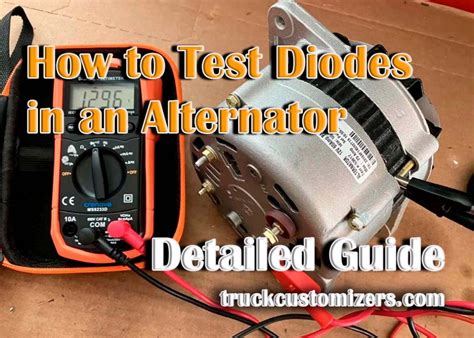

Diode Test
- Disconnect the positive and negative wires from the alternator.
- Set the multimeter to the diode mode.
- Connect the positive lead of the multimeter to the positive terminal of the diode and the negative lead to the negative terminal.
- A good diode will conduct in one direction only, showing a low resistance reading.
- Repeat this test for all diodes in the alternator. Any diode that reads differently indicates a fault.

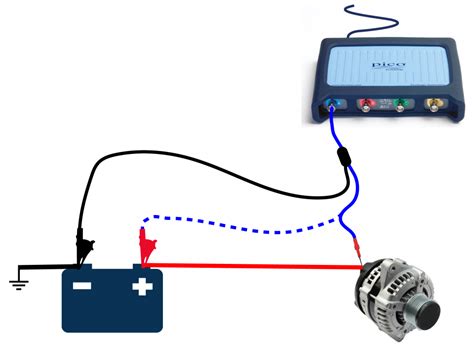

Output Ripple Test
- Connect an oscilloscope to the alternator's positive output terminal.
- Start the engine and run it at idle.
- Observe the waveform on the oscilloscope.
- A healthy alternator will produce a smooth waveform with minimal ripple. Excessive ripple indicates an alternator issue that may affect electronic components in the vehicle.

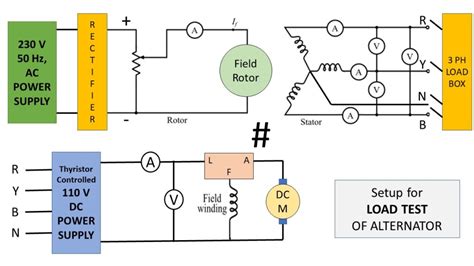

Load Test
- Use a load tester to apply a load to the alternator while the engine is running.
- Gradually increase the load until the alternator's output voltage drops below 12 volts.
- The alternator should be able to maintain a voltage of at least 12 volts even under a heavy load. A failure to do so indicates a weak alternator.

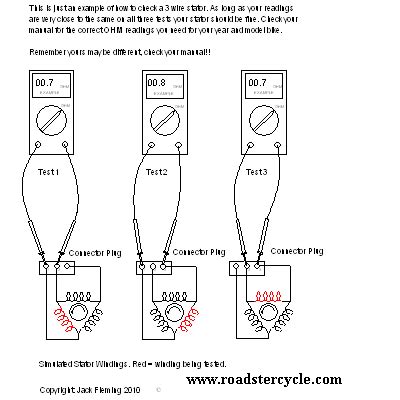

Stator Resistance Test
- Disconnect the stator wires from the alternator.
- Set the multimeter to the resistance mode.
- Measure the resistance between each pair of stator terminals.
- The resistance should be within the manufacturer's specifications, typically around 0.5 to 1 ohm per phase.

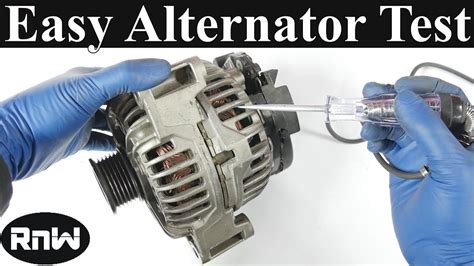

Rotor Continuity Test
- Disconnect the rotor from the alternator.
- Set the multimeter to the continuity mode.
- Touch one probe to the rotor's slip rings and the other probe to ground.
- The multimeter should indicate a continuous circuit. No continuity indicates a faulty rotor.
Conclusion
Testing an alternator is crucial for ensuring the proper functioning of a vehicle's electrical system. By following the steps outlined in this article, you can accurately diagnose any alternator issues and determine if it requires replacement. Regular alternator testing is recommended to avoid electrical problems and maintain the vehicle's performance.
Frequently Asked Questions (FAQs)
Can I test an alternator without a multimeter? No, a multimeter is an essential tool for testing an alternator's voltage, resistance, and continuity.
How often should I test my alternator? It is recommended to test your alternator every 50,000 to 75,000 miles or as per the manufacturer's guidelines.
What are the symptoms of a faulty alternator? Symptoms include a dead battery, dim or flickering lights, engine stalling, or difficulty starting the vehicle.
Can a bad alternator damage other components? Yes, a faulty alternator can damage the battery, starter, and other electrical components in the vehicle.
How much does it cost to replace an alternator? The cost of replacing an alternator varies depending on the vehicle model, labor charges, and the specific alternator required. On average, it can range from $500 to $1,000, including parts and labor.
