How to Check Alternator Output Voltage
Your car's alternator is responsible for generating the electricity that powers the electrical system, including the battery, lights, and ignition system. If the alternator is not functioning properly, it can lead to a variety of problems, including a dead battery, dim lights, or a car that won't start.
One of the most important things you can do to maintain your car's electrical system is to check the alternator output voltage regularly. This is a simple procedure that can be done with a few basic tools.
Here's how to check alternator output voltage:
- Start the car and let it idle.
- Connect a voltmeter to the battery terminals. The red lead of the voltmeter should be connected to the positive terminal of the battery, and the black lead should be connected to the negative terminal.
- Turn on the headlights and other electrical accessories. This will put a load on the alternator and help to ensure that it is operating properly.
- Read the voltmeter. The voltmeter should read between 13.5 and 14.5 volts. If the voltage is below 13.5 volts, the alternator may not be charging the battery properly. If the voltage is above 14.5 volts, the alternator may be overcharging the battery.
If the alternator output voltage is not within the specified range, it may be necessary to have the alternator tested or replaced.
How to Check Alternator Output Voltage
An alternator is a key component of a vehicle's electrical system, responsible for generating electricity and recharging the battery. Like any other car part, alternators can malfunction over time, leading to a decrease in their output voltage. Checking the alternator's output voltage is a crucial step in diagnosing and resolving electrical system issues in your vehicle.

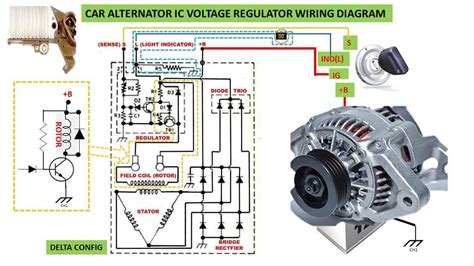

Voltage Regulation System
Before proceeding with testing the alternator's output voltage, understanding its voltage regulation system is essential. This system maintains a stable voltage level, typically around 14 volts, for the vehicle's electrical components. It consists of the following components:
- Voltage Regulator: Regulates the alternator's output voltage based on the electrical demand of the vehicle.
- Battery: Stores electrical energy and provides a stable voltage source for the vehicle when the engine is not running.
- Wiring Harness: Connects the alternator, battery, and voltage regulator.
Required Tools
To check the alternator's output voltage, you will need the following tools:
- Digital Multimeter
- Protective Gear (gloves and safety glasses)
Safety Precautions
Before starting the test, ensure your vehicle is parked in a safe location with the parking brake engaged. Additionally, wear protective gear to avoid any electrical accidents.
Step-by-Step Instructions
Step 1: Prepare Your Multimeter
- Set your digital multimeter to the "DC Voltage" setting, usually 20 volts or higher.
- Connect the black probe to the negative terminal of the battery.
Step 2: Connect to the Alternator
- Connect the red probe to the positive terminal of the alternator. Avoid touching any other wires or connections.
Step 3: Check the Voltage
- Start the engine and let it idle.
- Observe the voltage reading on the multimeter.
Step 4: Test with Electrical Load
- Turn on the headlights, heater, and other electrical components to increase the electrical load on the alternator.
- Monitor the voltage reading again. It should remain within the 13-15 volt range.
Interpreting the Results
- Normal Output: If the voltage reading remains steady between 13 and 15 volts, the alternator is functioning correctly.
- Low Output: If the voltage reading falls below 13 volts, the alternator may not be generating sufficient power.
- High Output: If the voltage reading exceeds 15 volts, the voltage regulator or alternator may be overcharging the electrical system.
Troubleshooting Tips
- Loose Connections: Check for loose connections between the alternator, battery, and voltage regulator.
- Faulty Voltage Regulator: If the voltage is consistently low or high, the voltage regulator may need replacing.
- Alternator Failure: In severe cases, the alternator itself may have failed and require replacement.
Conclusion
Checking the alternator's output voltage is a straightforward yet effective way to diagnose electrical system problems in your vehicle. By following the steps outlined in this article, you can determine if the alternator is functioning correctly or requires further attention. Ignoring alternator issues can lead to premature battery failure and other electrical problems. Regular alternator maintenance, including output voltage checks, is crucial for a reliable and efficient electrical system in your vehicle.
FAQs
1. What is the ideal alternator output voltage? Generally, the alternator's output voltage should be maintained around 14 volts.
2. Can I check the alternator output voltage without a multimeter? No, a digital multimeter is necessary to accurately measure the alternator's output voltage.
3. What does it indicate if the alternator output voltage is constantly low? A consistently low alternator output voltage may suggest a problem with the alternator itself, the voltage regulator, or loose connections.
4. Can driving with a faulty alternator damage my battery? Yes, driving with a faulty alternator can lead to the battery being overcharged or undercharged, potentially damaging the battery.
5. How often should I check the alternator output voltage? It is not necessary to check the alternator output voltage regularly. However, it is recommended to do so if you experience any electrical problems or suspect issues with the alternator.
.
