Your Car's Alternator: Unmasking the Mystery of Bad Diodes
Your car's electrical system is like a finely tuned symphony, with each component playing a harmonious role. But when one of those components goes awry, the entire orchestra can fall out of tune. Enter the alternator diode, a small but mighty part that can cause big headaches when it malfunctions.
Have you noticed your car's headlights flickering or dimming erratically? Is the battery light on your dashboard taunting you with its ominous glow? These could be signs of a bad alternator diode.
An alternator diode is a semiconductor device that allows electricity to flow in only one direction. In the alternator, diodes ensure that the current generated by the rotor flows smoothly to the battery and other electrical accessories. When a diode goes bad, it can disrupt this electrical flow, leading to a slew of annoying issues.
If you suspect a bad diode in your alternator, it's crucial to seek professional diagnosis and repair. A qualified mechanic can pinpoint the faulty diode using specialized testing equipment and replace it efficiently. Ignoring a bad alternator diode can lead to a drained battery, starting problems, and even electrical damage to your car.
What is a Bad Diode in Alternator?
The alternator is a fundamental component of a vehicle's electrical system, responsible for converting mechanical energy into electrical energy. However, the alternator can develop faults, one of which is a malfunctioning diode.
Function of Diodes in Alternator
Diodes in an alternator serve a crucial role in rectifying the alternating current (AC) generated by the alternator into direct current (DC), which is used by the vehicle's electrical components.
Symptoms of a Bad Diode
A faulty diode in an alternator can manifest itself through various symptoms:
- Dim headlights: Dimming or flickering headlights indicate a reduced electrical output from the alternator.
- Battery not charging: A discharged battery despite running the engine suggests a failure of the alternator's charging system.
- Voltage fluctuations: Abnormal voltage fluctuations visible on the dashboard voltmeter indicate an unstable electrical supply.
- Electrical system malfunctions: Intermittent failures of electrical components, such as the radio or power windows, can point to a diode issue.
- Overcharging: In rare cases, a faulty diode can cause the alternator to overcharge the battery, leading to damage.
Causes of Diode Failure
Diodes can fail due to several reasons:
- Overheating: Excessive heat can degrade the diode's internal components.
- Voltage spikes: Voltage surges can damage the diode's junction.
- Corrosion: Moisture and contaminants can lead to corrosion, affecting the diode's functionality.
- Mechanical stress: Vibrations from the engine can weaken the diode's connections.
Consequences of a Bad Diode
A bad diode can have detrimental effects on the vehicle's electrical system:
- Diminished charging capacity: The alternator's ability to charge the battery is reduced.
- Electrical component damage: Fluctuating voltage or overcharging can damage sensitive electrical components.
- Battery depletion: The battery may discharge prematurely, leading to a loss of power.
- Increased fuel consumption: A poorly functioning alternator can burden the engine, resulting in increased fuel consumption.
Diagnosis of Diode Failure
Diagnosing a bad diode involves testing the alternator's output voltage and diode functionality:
- Voltage test: Using a voltmeter, check the voltage output at different engine speeds. A faulty diode may exhibit low or unstable voltage.

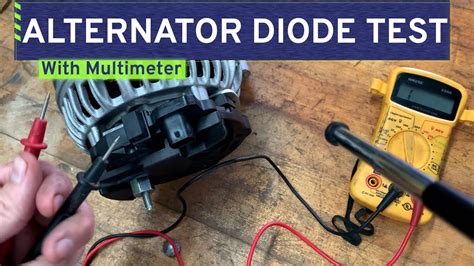

- Diode test: A diode tester can be used to verify the diode's forward and reverse conduction properties. A bad diode will show an open circuit in one or both directions.
Repairing a Bad Diode
Repairing a bad diode requires replacing the faulty diode with a new one:
- Access the alternator: Remove the alternator from the vehicle to access the diodes.
- Identify the bad diode: Use a diode tester to identify the failed diode.
- Replace the diode: Remove and replace the bad diode with a new diode of the same type and specifications.
- Reinstall the alternator: Mount the alternator back into the vehicle and reconnect all electrical connections.
Preventing Diode Failure
Preventing diode failure involves proper maintenance and care of the alternator:
- Regular maintenance: Inspect the alternator regularly for signs of wear or damage.
- Protect from heat: Avoid excessive engine temperatures that can overheat the alternator.
- Test voltage spikes: Use a voltage regulator to protect the alternator from sudden voltage surges.
- Secure alternator: Ensure the alternator is securely mounted to minimize vibrations.
Conclusion
A bad diode in an alternator can lead to various electrical system problems. Diagnosing and repairing a faulty diode is essential to restore the alternator's functionality and maintain the vehicle's electrical health. By understanding the causes and symptoms of diode failure, taking preventive measures, and promptly addressing any issues, you can prevent alternator problems and ensure a reliable electrical system for your vehicle.
FAQs
- What is the average lifespan of alternator diodes?
- The lifespan of alternator diodes varies depending on operating conditions and maintenance practices but typically ranges from 5 to 10 years.
- Can I replace alternator diodes myself?
- While replacing alternator diodes is not particularly complex, it requires some mechanical and electrical knowledge. If you are not confident in your abilities, it is recommended to seek professional assistance.
- What are the warning signs of a failing alternator diode?
- Dimming or flickering headlights, battery not charging, voltage fluctuations, and electrical component malfunctions are all potential signs of alternator diode failure.
- Can a bad alternator diode damage my battery?
- Yes, a bad alternator diode can lead to overcharging, which can damage the battery.
- What is the cost of replacing alternator diodes?
- The cost of replacing alternator diodes can vary depending on the vehicle model and the number of diodes to be replaced. On average, the cost ranges from $100 to $300.
